Semi-Elliptical Table 2 1 of 3

Jaidyn Fulton

Jaidyn Fulton
Year 12
St Patrick's College, Qld
Teacher: Warren Bolton, Industrial and Technology

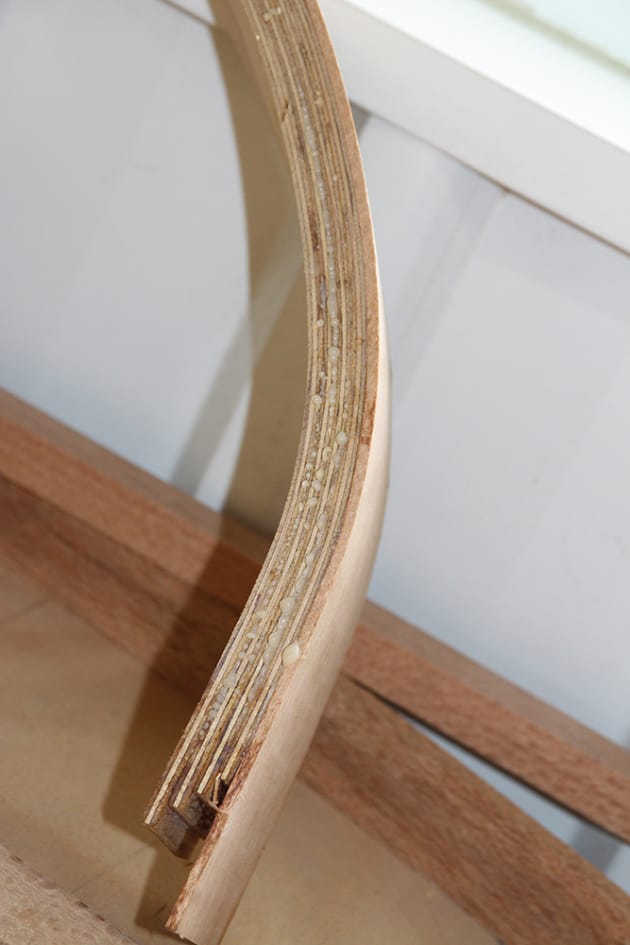

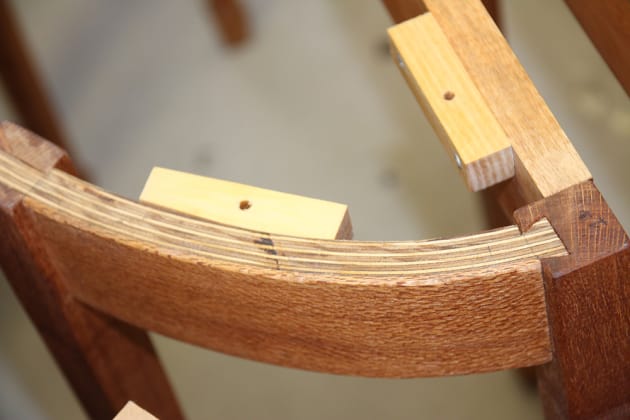

The semi-elliptical table was a set class project. I started by drawing a full size set-out using measurements from a given set of plans. The rim was pressed in a caul using three pieces of 6mm structural ply and a 3mm silky oak veneer front. A two part epoxy resin glue was used for strength to maintain the shape. A combination of dovetail and bridle joints was incorporated to secure the tapered legs to the rim. The top was biscuit jointed to achieve the required width and a design for the rear pediment was chosen. I personalised my table by carving curved grooves into the edge of the top and pediment with a V-tool. The finish I chose was four coats of raw linseed oil, rubbed in with a cloth by hand. I then gave a final finish of O’Cedar oil.

Semi-Elliptical Table 2 2 of 3

Jaidyn Fulton

Jaidyn Fulton
Year 12
St Patrick's College, Qld
Teacher: Warren Bolton, Industrial and Technology

The semi-elliptical table was a set class project. I started by drawing a full size set-out using measurements from a given set of plans. The rim was pressed in a caul using three pieces of 6mm structural ply and a 3mm silky oak veneer front. A two part epoxy resin glue was used for strength to maintain the shape. A combination of dovetail and bridle joints was incorporated to secure the tapered legs to the rim. The top was biscuit jointed to achieve the required width and a design for the rear pediment was chosen. I personalised my table by carving curved grooves into the edge of the top and pediment with a V-tool. The finish I chose was four coats of raw linseed oil, rubbed in with a cloth by hand. I then gave a final finish of O’Cedar oil.

Semi-Elliptical Table 2 3 of 3

Jaidyn Fulton

Jaidyn Fulton
Year 12
St Patrick's College, Qld
Teacher: Warren Bolton, Industrial and Technology

The semi-elliptical table was a set class project. I started by drawing a full size set-out using measurements from a given set of plans. The rim was pressed in a caul using three pieces of 6mm structural ply and a 3mm silky oak veneer front. A two part epoxy resin glue was used for strength to maintain the shape. A combination of dovetail and bridle joints was incorporated to secure the tapered legs to the rim. The top was biscuit jointed to achieve the required width and a design for the rear pediment was chosen. I personalised my table by carving curved grooves into the edge of the top and pediment with a V-tool. The finish I chose was four coats of raw linseed oil, rubbed in with a cloth by hand. I then gave a final finish of O’Cedar oil.

You have just viewed "Semi-Elliptical Table 2"

17 December 2016
